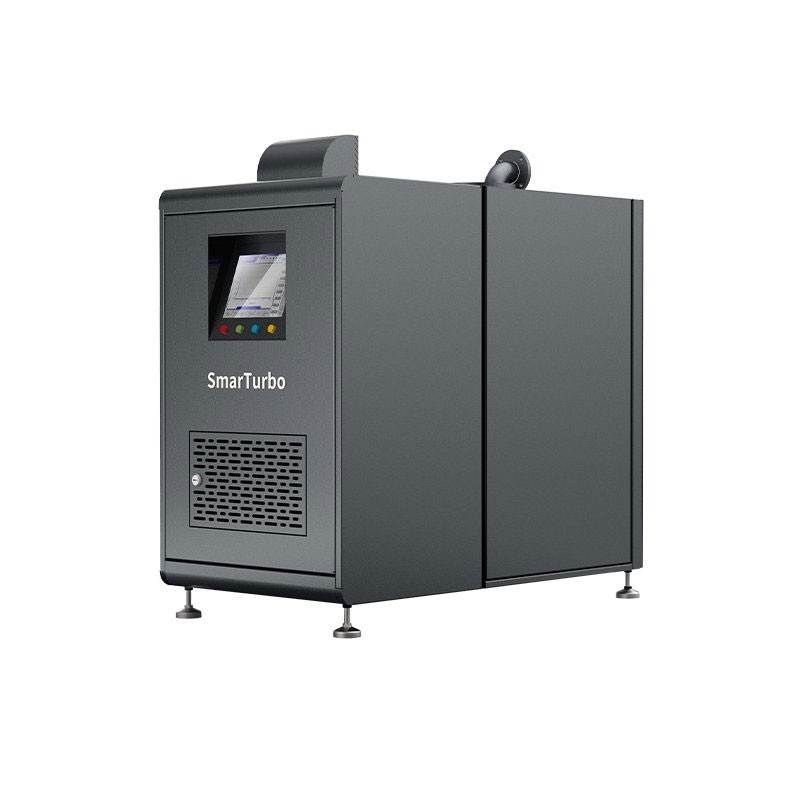

Turbo Blower-Air Bearing Turbo Blower
- Full Description
Details about Turbo Blower-Air Bearing Turbo Blower
Turbo Blower Core Technology

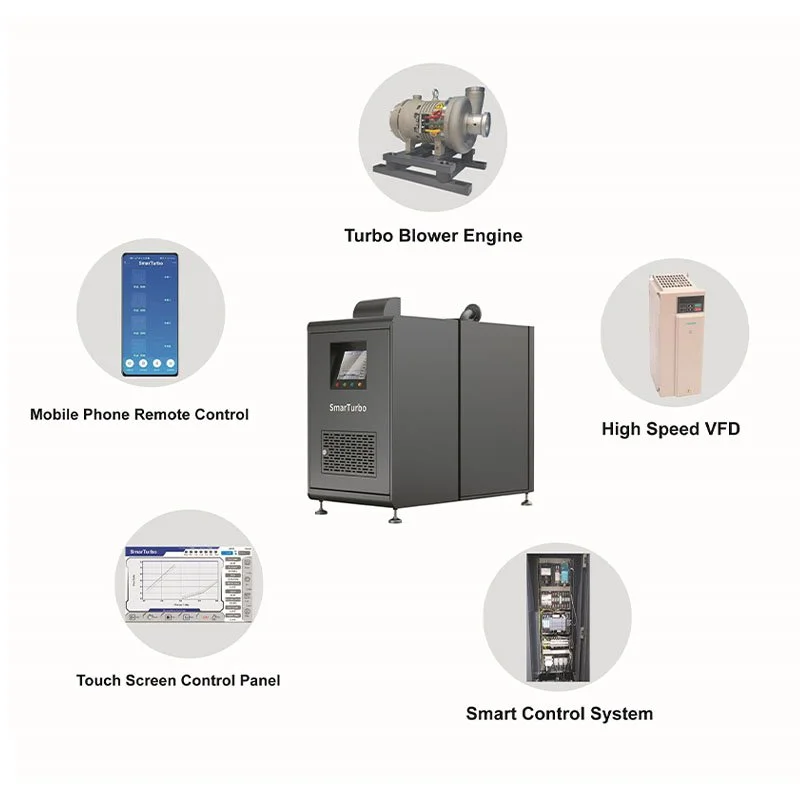

Turbo blower consist of core technology of Turbo Blower Engine, High Speed VFD, Smart Control System, Touch Screen Control Panel and Mobile Phone Remote Control.

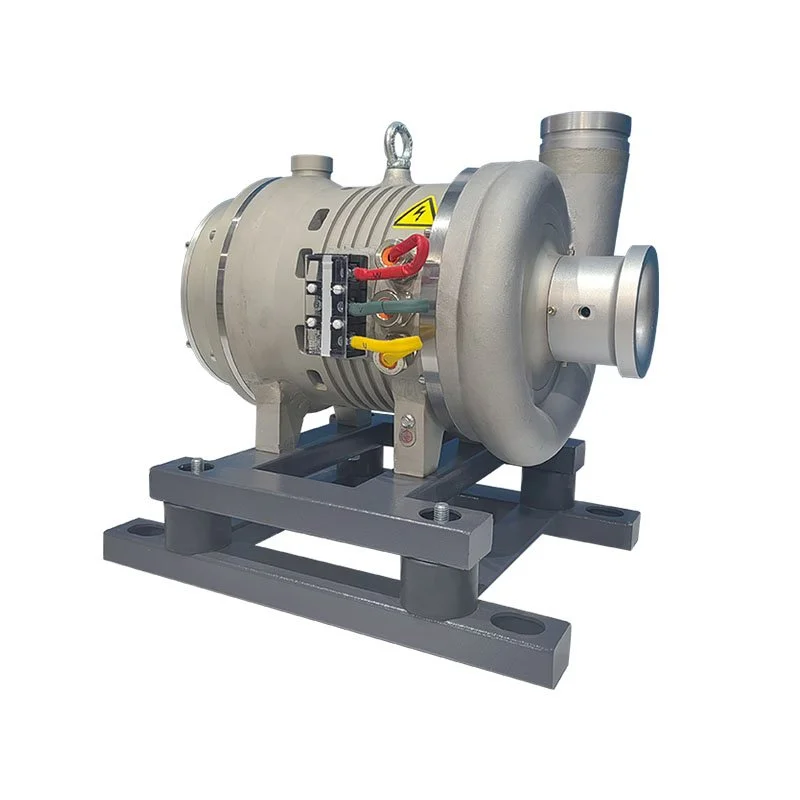

Turbo Blower Engine
Turbo blower engine is high speed centrifugal blower

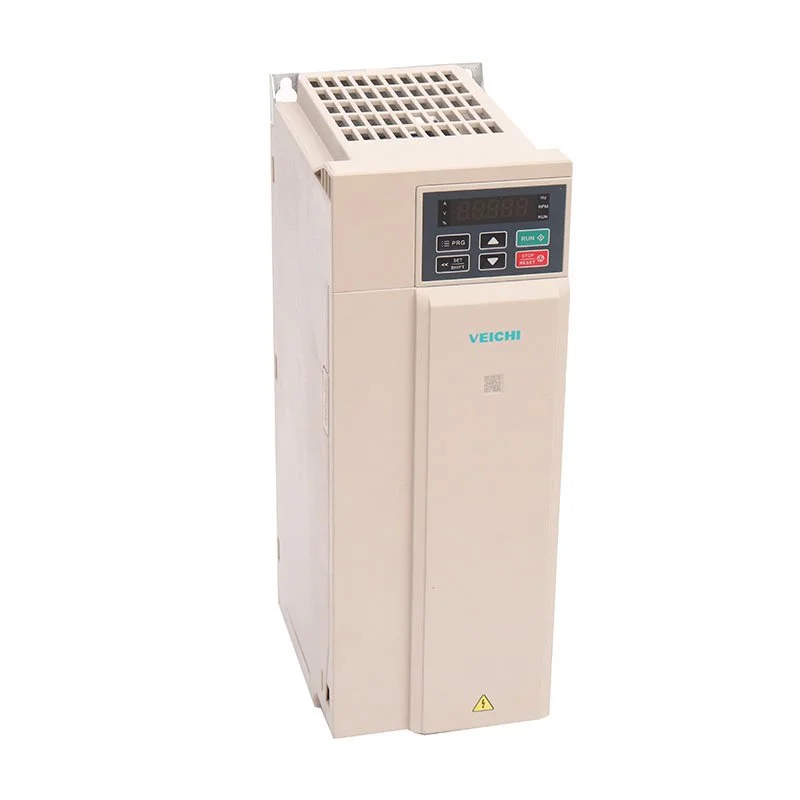

High Speed VFD
The developed high performance VFD for high speed permanent magnet motor is more energy-saving and high-efficient.
Smart Control System
It adopts PLC control with multiple communication method. Multiple control and monitoring is available, including the on-site, DCS remote and 4G-LTE.
Through state monitoring of logic data, built-in control program automatically detects, judges and terminates abnormal operation.
One-button start-stop control is reserved to facilitate on-site commissioning and troubleshooting under abnormal operation in time.

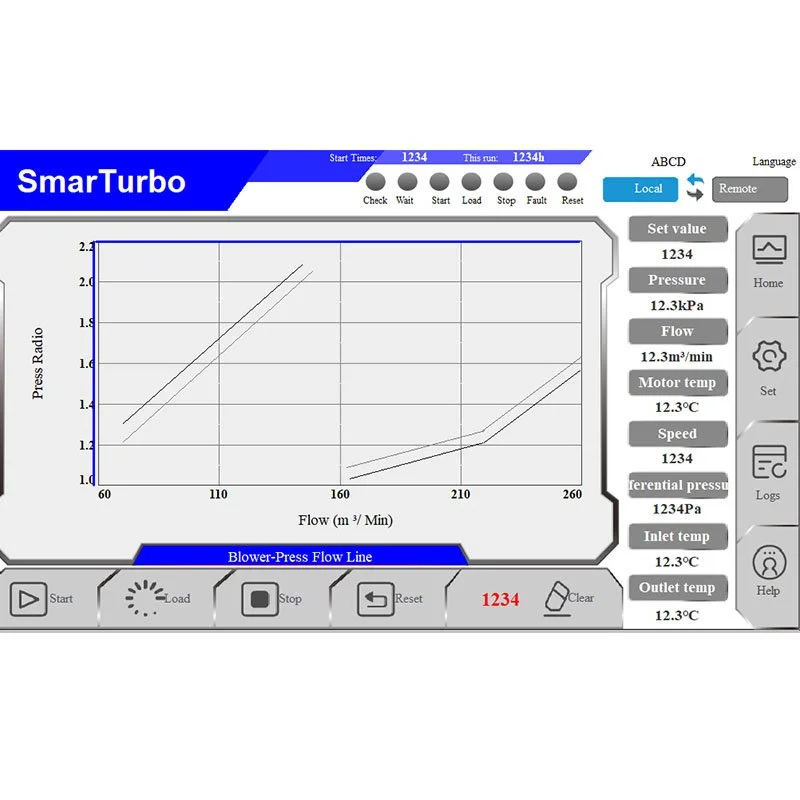

Touch Screen Control Panel
Simple and clear interface is easy to operate, detect and display system pressure and flow curve in real time.

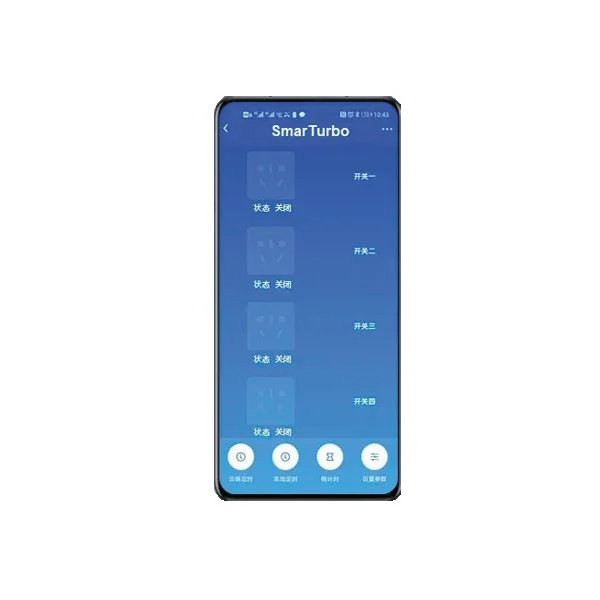

Mobile Phone Remote Control
Turbo blower can be remotely monitored and controlled through mobile devices by user.
Turbo Blower Engine Technology

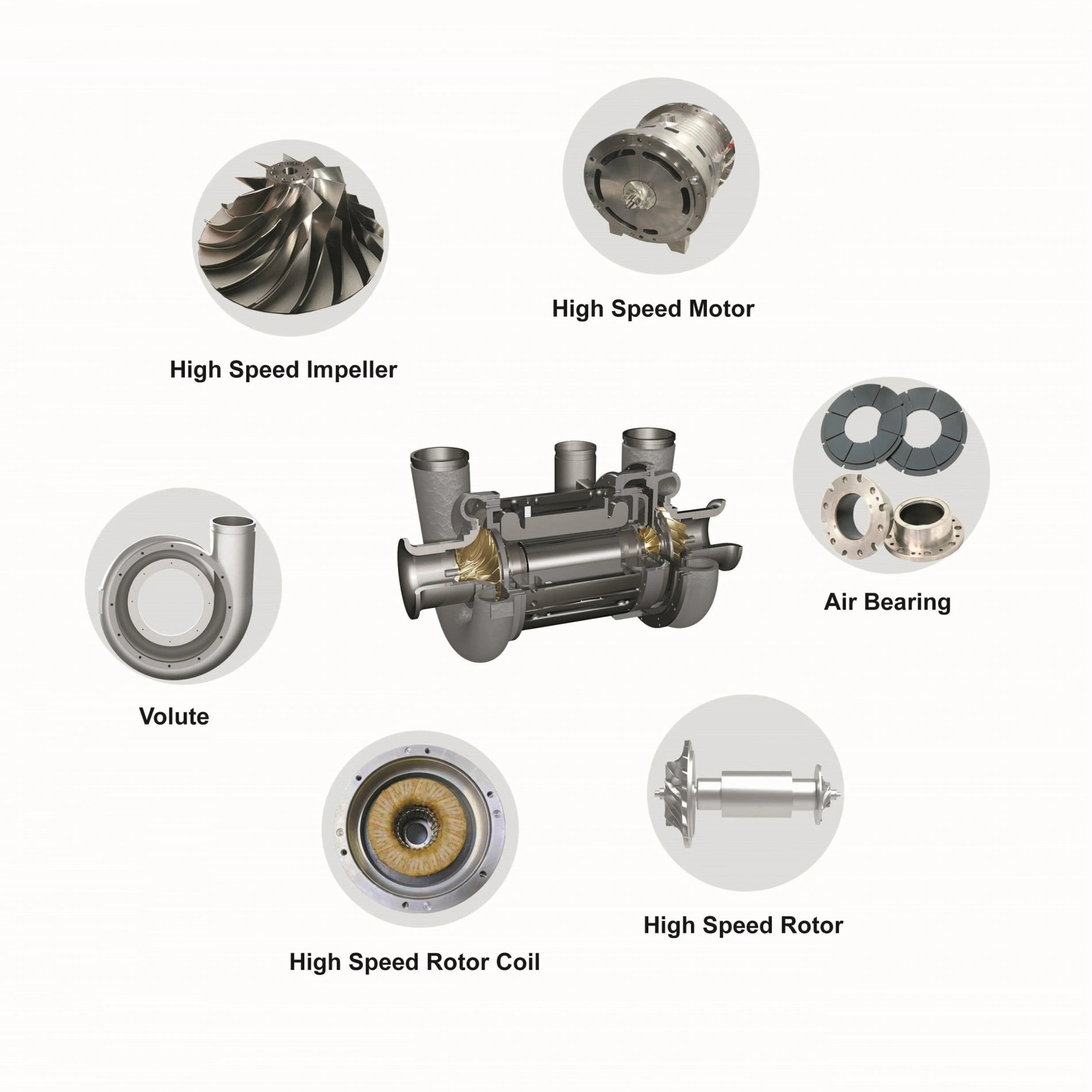

Turbo blower engine consist of core technology of High Speed Impeller, High Speed Motor, Air Bearing, High Speed Rotor, High Speed Rotor Coil and Volute..

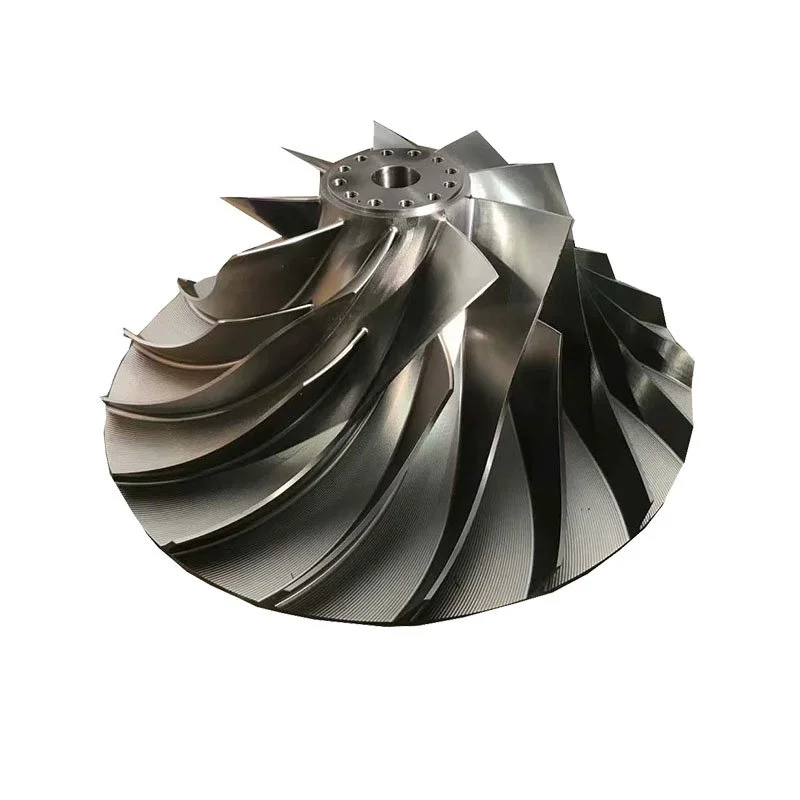

High Speed Impeller
Turbo blower engine adopts design concept of three-dimensional flow impeller, which improves impeller efficiency up to 95%,realizes wide operation range, and volume flow adjustable from 45% to 100%.
High Speed Motor
Permanent magnet synchronous motor is with electromagnetic efficiency up to 98%, wide range of high efficient operation, directly-driven loading, and without transmission loss.

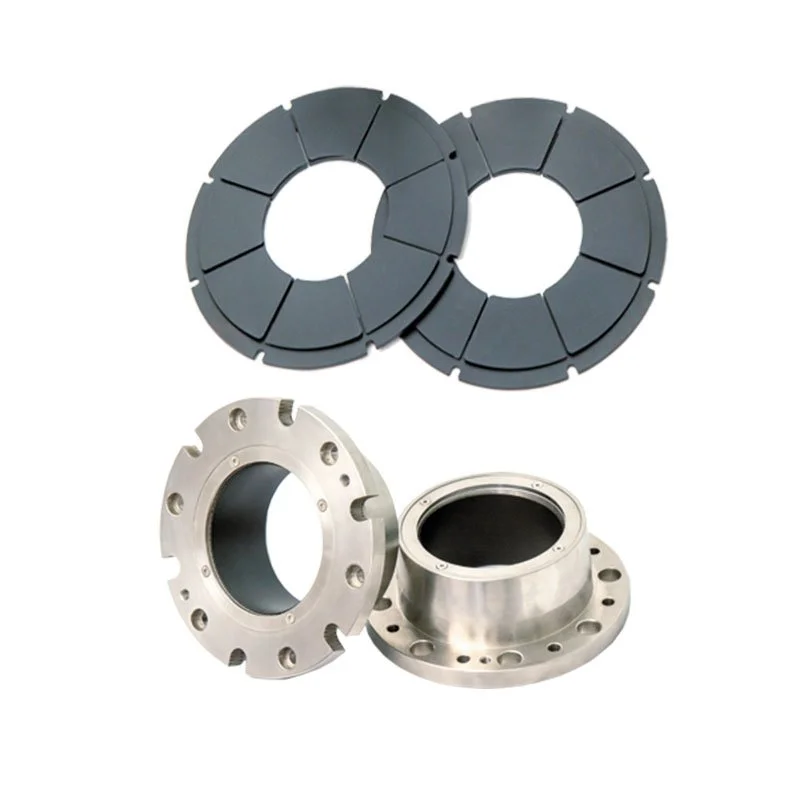

Air Bearing
Air bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.

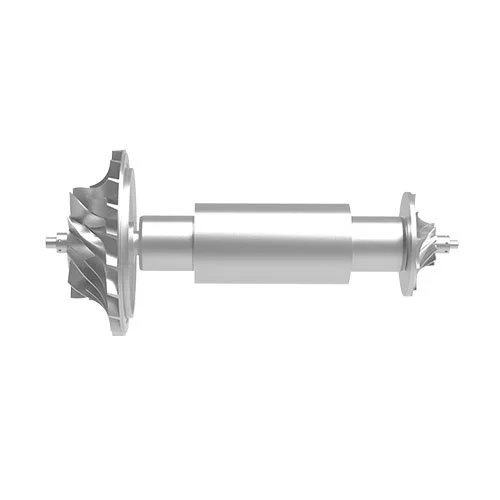

High Speed Rotor
Variable frequency and speed control is good for the motor rotating in maximum speed of 200000 rpm.

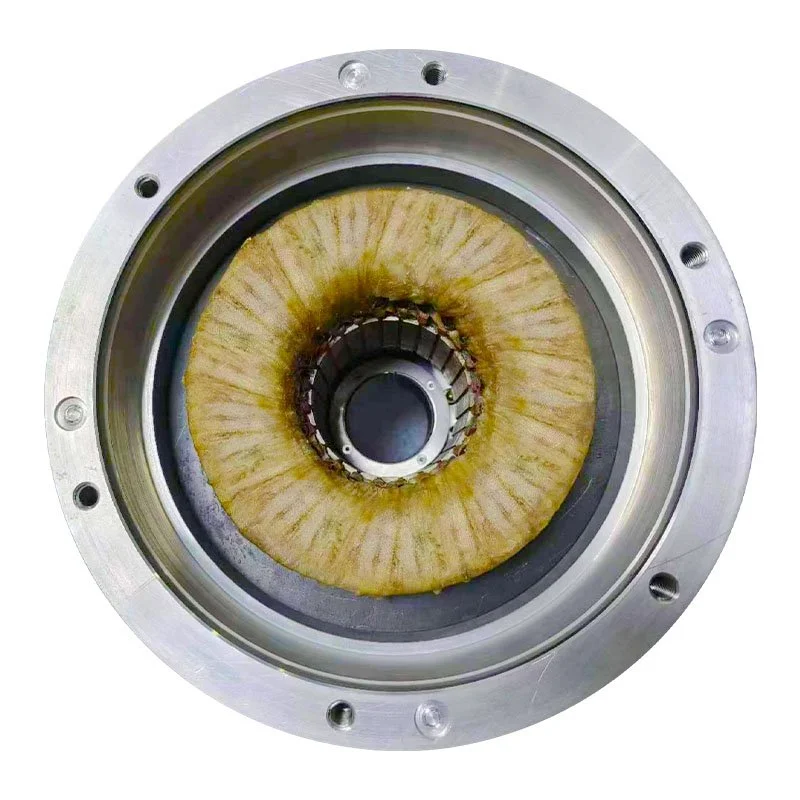

High Speed Rotor Coil
Class H insulation is adopted to make the motor has high reliability and durability even operating in high temperature, strong corrosion and current shock.

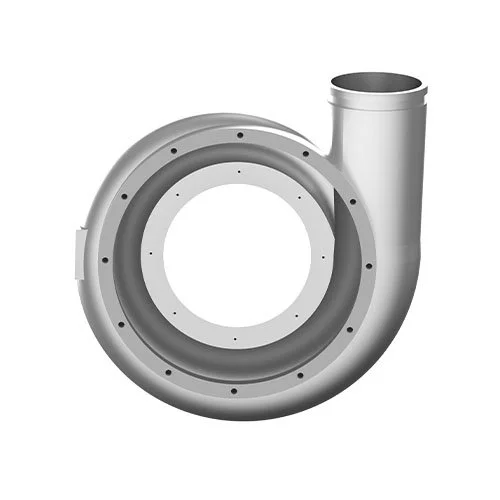

Volute
High efficient aerodynamic design ensure good aerodynamic performance of blade and low aerodynamic noise, which help satisfy high pressure ratio, high efficiency and large flow aerodynamic performance
- Benefits and Features
-
Turbo Blower-Air Bearing Turbo Blower Advantage
-
High Efficiency Turbo blower saves 50% more electricity than traditional roots blower.
-
Smart Control Turbo blower adopts a touchscreen control panel and mobile phone remote control. It supports multiple control methods.
-
Plug and Play Turbo blower airflow and pressure are adjusted by blower rotation speed.
-
Easy Maintenance Regularly replace filter cotton as per the hints. The maintenance is easy and fast at an extremely low cost.
-
- Areas of use
-
Turbo Blower-Air Bearing Turbo Blower areas of use
-
Chemical Industry Turbo blowers can be utilized for the aeration, chemical substances mixing, ventilation, and pneumatic transport of powdered and granulated materials, among other processes.
-
Wastewater Treatment and Water Supply Air Bearing Turbo Blowers are widely used for aeration in biological wastewater treatment processes and water treatment systems to enrich water with oxygen or other gases.
-
Energy Sector Turbo blowers are employed to facilitate gas processing operations, as well as serve as part of air cooling and ventilation systems at power plants.
-
Cement Production In cement plants, turbo equipment can be used to support aeration, mixing, and transport processes for powdered and granular components.
-
Oil and Gas Industry In the oil and gas sector, turbo blowers are found to apply ventilation, aeration, gas lifting, and pressure recovery in storage or transportation systems.
-
Agriculture Turbo equipment is applied for aeration in aquaculture and hydroponics systems, ensuring water is oxygenated for plant growth and fish breeding.
Overall, Air Bearing Turbo Blowers are utilized in manufacturing processes where pressure is needed alongside large volumes of air under intense operating conditions.
-
- Technology
-
Air Bearing
Air bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.

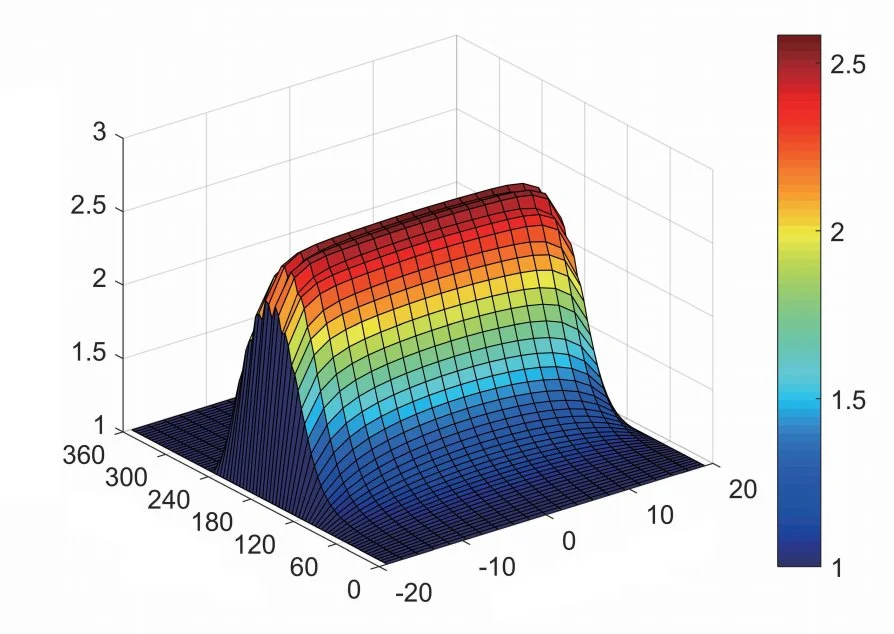

Design Simulation

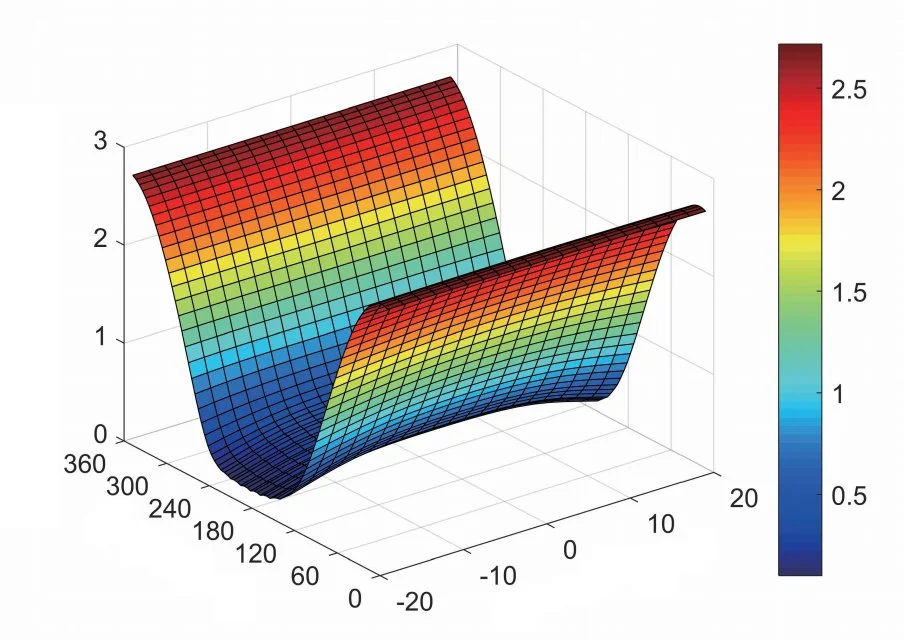

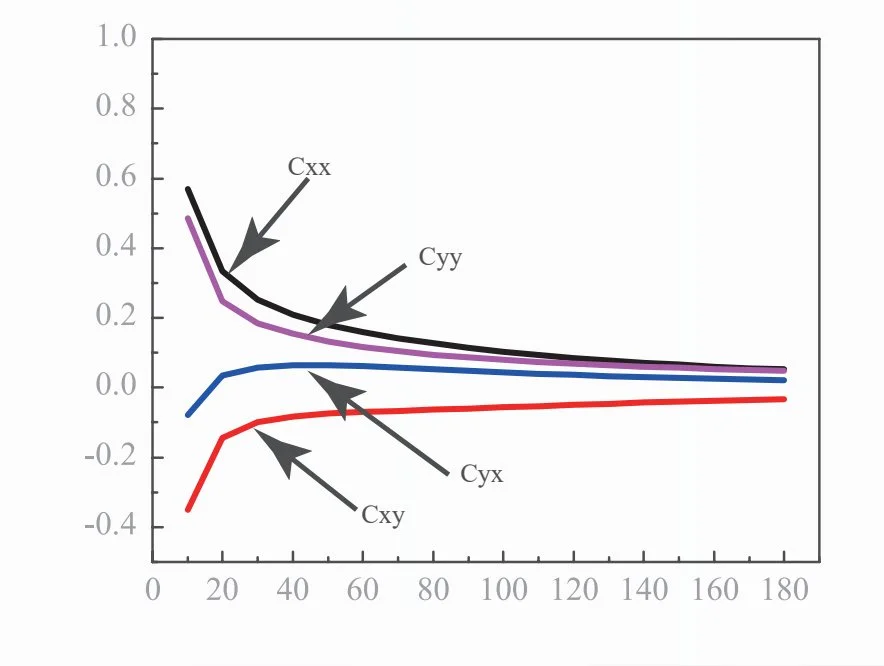

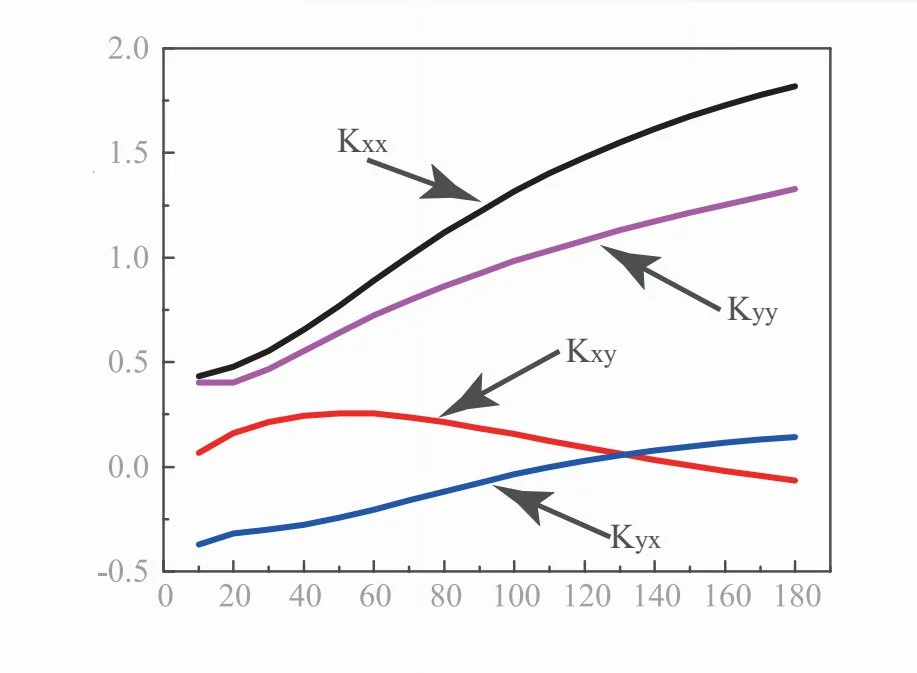

The bearing load capacity, rigidity and damping coefficients can be precisely predicted by the self-developed simulation software for air bearing performance.
A series of bearing development is completed: bearing diameter range of 20mm~100 mm; bearing operating speed ranges from 20 krpm to 200 krpm. The power of air bearing supported machine ranges from 10 kW to 500 kW.

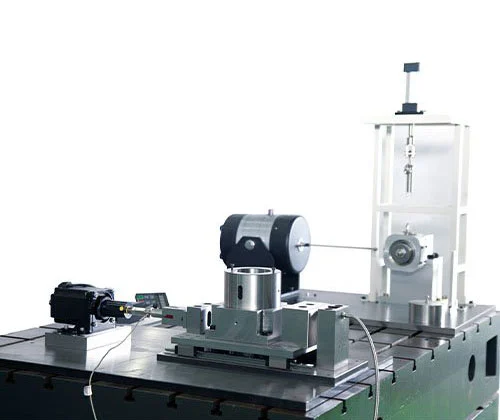

Test

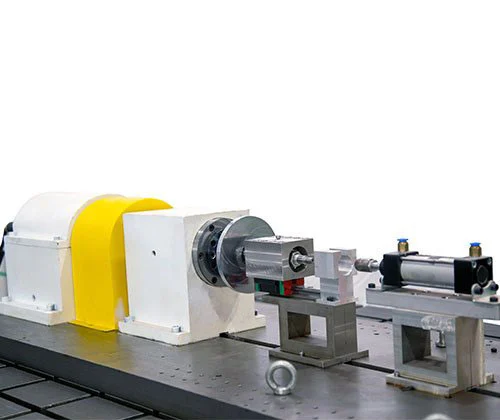

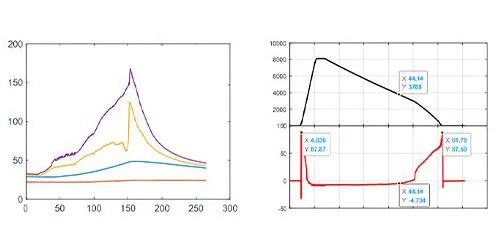

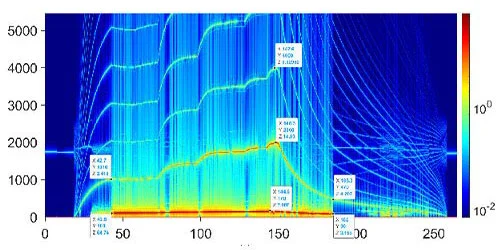

A comprehensive air bearing test system has been established. Our fully-developed bearing test capability and data analysis capability can carry out performance verification for air bearing and provide technical support for the test, as a result tailor-made products can be realized.
Manufacture

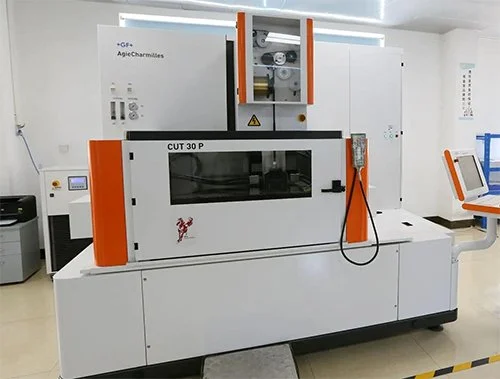

By complete production process flow for air bearing and the perfect supply chain system, the key and core process manufacture can all be carried out by ourselves. With an annual output of 5000 sets of bearing, it realizes bearing series, batch production and supports bearing customization.
Specifications of the Turbo Blower-Air Bearing Turbo Blower
Turbo Blower Parameter Table
| Model | 3HP | 5.5HP | 7HP | 10HP | 15HP | 20HP | 30HP | 40HP | 50HP | 75HP | 100HP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge Pressure, kpa | Air Flow (m³/min)，20 ℃，Humidity 60%, 1atm | ||||||||||
| 30 | / | / | 7 | 10 | 12 | 18 | 29 | 43 | 52 | 88 | 107 |
| 40 | 2.5 | 5 | 6 | 9 | 11 | 16 | 27 | 38 | 47 | 76 | 95 |
| 50 | / | / | 5 | 8 | 10 | 14 | 24 | 33 | 40 | 59 | 77 |
| 60 | / | / | 4.5 | 7 | 9 | 12 | 21 | 28 | 35 | 53 | 69 |
| 70 | / | / | 4 | 6 | 8 | 9 | 19 | 25 | 31 | 46 | 63 |
| 80 | / | / | 3 | 5 | 7 | 8 | 18 | 22 | 28 | 41 | 55 |
| 90 | / | / | / | / | / | / | 15 | 19 | 25 | 37 | 50 |
| 100 | / | / | / | / | / | / | 13 | 17 | 22 | 34 | 45 |
| 110 | / | / | / | / | / | / | / | / | / | 29 | 41 |
| 120 | / | / | / | / | / | / | / | / | / | / | 38 |
| Shaft Power (kw) | 2.2 | 4 | 5 | 7.5 | 11 | 15 | 23 | 30 | 38 | 58 | 75 |
| Blower Power (kw) | 3 | 3.5 | 6.5 | 9 | 12.5 | 17.5 | 28 | 37 | 44 | 68 | 83 |
| Model | 125HP | 150HP | 175HP | 200HP | 250HP | 300HP | 350HP | 400HP | 500HP | 600HP | 700HP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge Pressure, kpa | Air Flow (m³/min)，20 ℃，Humidity 60%, 1atm | ||||||||||
| 30 | 142 | 173 | 196 | 222 | 261 | 288 | 334 | 371 | / | / | / |
| 40 | 120 | 150 | 172 | 190 | 228 | 256 | 296 | 335 | 430 | 540 | 648 |
| 50 | 95 | 115 | 129 | 156 | 196 | 225 | 270 | 311 | 384 | 490 | 604 |
| 60 | 87 | 105 | 110 | 140 | 170 | 210 | 246 | 280 | 334 | 420 | 510 |
| 70 | 78 | 92 | 106 | 120 | 155 | 181 | 208 | 235 | 298 | 378 | 452 |
| 80 | 70 | 85 | 98 | 110 | 136 | 160 | 190 | 220 | 260 | 336 | 410 |
| 90 | 62 | 70 | 79 | 94 | 122 | 138 | 163 | 186 | 240 | 302 | 372 |
| 100 | 56 | 65 | 75 | 88 | 110 | 126 | 150 | 174 | 224 | 282 | 358 |
| 110 | 50 | 59 | 70 | 82 | 101 | 120 | 140 | 161 | 202 | 268 | 332 |
| 120 | 45 | 53 | 65 | 75 | 90 | 116 | 131 | 148 | 188 | 250 | 298 |
| Shaft Power (kw) | 94 | 114 | 130 | 150 | 185 | 225 | 262 | 300 | 375 | 450 | 546 |
| Blower Power (kw) | 102 | 124 | 142 | 175 | 208 | 244 | 295 | 320 | 400 | 500 | 600 |
